Instruments

ECO PHYSICS offers a broad range of NOx analyzers capable of measuring various parameters combined with high adaptibility to a multitude of sampling conditions.

The principle of chemiluminescence detection is an extremely selective method for measuring nitrogen oxides precisely, with high linearity over a wide concentration range and with very high reproducibility. These qualities are the basis for the acknowledged high performance of ECO PHYSICS CLD NOx analyzers in tracing nitrogen oxides even down to the low ppt level.

Within each series, the second digit in the model name defines the measurement range of your first channel. If you estimate your highest concentration to be below 5000 ppm, you will have the choice of full range of any figure between 5 and 5000 ppm, e.g. 33 ppm or 850 ppm. Please consider, instruments configured with smaller measurement ranges of course possess a higher resolution.

nCLD 6x Series

Many scientists, technicians and engineers depend on the NOx readings from their ECO PHYSICS analyzers. Many more would like to – and now they have a choice: The cost-effective nCLD 60 series. The simplified setup makes it easy for every system integrator.

nCLD 62

Gas Analyzer

parameters: NO / NOx, O2, CO2
instruments: nCLD 6x Series

nCLD 63

Gas Analyzer

parameters: NO / NOx
instruments: nCLD 6x Series

nCLD 66

Gas Analyzer

parameters: NO / NOx
instruments: nCLD 6x Series

nCLD 62 MOx

Multi-Gas Analyzer

parameters: NO / NOx, O2, CO2
instruments: nCLD 6x Series

nCLD 63 MOx

Multi-Gas Analyzer

parameters: NO / NOx, O2, CO2
instruments: nCLD 6x Series

nCLD 8xx Series

The nCLD 800 Series covers multiple applications, including ambient air, stack emission, combustion and gas manufacturing monitoring. Equipped with the latest graphical user interface and multiple connectors for data transmission, calibrate, operate and maintain your neoCLD according to your individual needs.

nCLD 82 S

Modular Gas Analyzer

parameters: NO, NO2, NOx
instruments: nCLD 8xx Series

nCLD 88

Modular Gas Analyzer

parameters: NO / NOx
instruments: nCLD 8xx Series

nCLD 88 Yp

Modular Gas Analyzer

parameters: NO / NOx
instruments: nCLD 8xx Series

nCLD 822 Mh

Modular Gas Analyzer

parameters: NO, NO2, NOx
instruments: nCLD 8xx Series

nCLD 822 SSdhr

Modular Gas Analyzer

parameters: NOx-NOx-dual-channel
instruments: nCLD 8xx Series

nCLD 824 MMdr

Modular Gas Analyzer

parameters: NOx-NOx-dual-channel
instruments: nCLD 8xx Series

nCLD 844 CMhr

Modular Gas Analyzer

parameters: NO, NO2, NOx, NH3, NOx - amines
instruments: nCLD 8xx Series

nCLD 82 Mh

Modular Gas Analyzer

parameters: NO / NOx
instruments: nCLD 8xx Series

nCLD 88 p

Modular Gas Analyzer

parameters: NO / NOx
instruments: nCLD 8xx Series

nCLD 822 Mr

Modular Gas Analyzer

parameters: NO, NO2, NOx
instruments: nCLD 8xx Series

nCLD 822 Mhr

Modular Gas Analyzer

parameters: NO, NO2, NOx
instruments: nCLD 8xx Series

nCLD 822 CMhr

Modular Gas Analyzer

parameters: NO, NO2, NOx, NH3, NOx - amines
instruments: nCLD 8xx Series

nCLD 844 M

Modular Gas Analyzer

parameters: NO, NO2, NOx
instruments: nCLD 8xx Series

nCLD 855 Y

Modular Gas Analyzer

parameters: NO, NO2, NOx
instruments: nCLD 8xx Series

nCLD Supreme Series

This sophisticated analyzer starts up automatically and begins the intended measurements immediately upon reaching its ope­rating state. In the same simple manner you may operate and adapt all available parameters.

nCLD 811 M

SupremeLine Gas Analyzer

parameters: NO, NO2, NOx
instruments: SupremeLine Series

nCLD 899 Y

SupremeLine Gas Analyzer

parameters: NO, NO2,  NOx
instruments: nCLD Supreme

CraNOx II

SupremeLine Gas Analyzer

parameters: NO, NO2, NOx, O3
instruments: nCLD Supreme

nCLD 811 CM

SupremeLine Gas Analyzer

parameters: NO, NO2, NOx, NH3, NOx - amines
instruments: SupremeLine Series

nCLD 899 CY

SupremeLine Gas Analyzer

parameters: NO, NO2, NOx, NH3, NOx - amines
instruments: nCLD Supreme

nCLD AL / nCLD AL2

The nCLD AL and nCLD AL2 are the next generation in high precision ambient air and process monitoring. Unique in speed and reliability, these analyzers are modular designed and capable of sequential or simultaneous measurement of NO, NO2 and NOx. Their graphical user interface “GUI“ also individually displays and connects to other instruments’ data.

nCLD AL

Ambient Level Gas Analyzer

parameters NO, NO2, NOx
instruments nCLD AL

nCLD AL²

Ambient Level Gas Analyzer

parameters NO, NO2, NOx
instruments nCLD AL²

CLD 780 TR

The NO analyzer for scientific research of the free troposphere. Specially designed to rapidly detect very low NO/NOX concentrations in the range of parts per trillion, the CLD 780 TR is a tailor-made solution for aircraft and vertical flux measurements.

CLD 780 TR

Tropospheric Research Gas Analyzer

parameters: NO, NOx
instruments: CLD 780 TR

M17

M17 provides a solution for a wide range of complex problems associated with CMP process control. This has been used successfully in manufacturing and development lines worldwide since 1996. The basic approach to control a CMP process containing a nitride change at the stoplayer is the foundation of this M17 system. M17 has been developed jointly by ECO PHYSICS and a leading edge semiconductor company in 1996.

M 17

End-Point Control System for CMP Process

Auxiliaries

Our auxiliary devices cover a range of applications and purposes including analyzers, air generators, converters, and purifiers. These products are designed to work in line with our other devices providing additional functionality in operation.

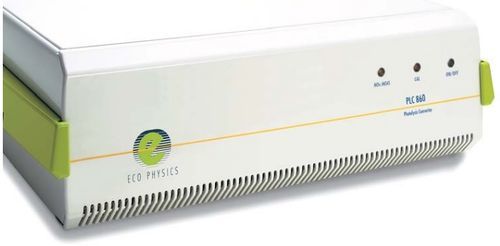

PLC 860

Photolytic NO2 Converter

instruments: Auxiliaries

PAG 003

Pure Air Generator

instruments: Auxiliaries

DIL 200/400

High Precision Gas Diluter

instruments: Auxiliaries

Liquid NO nCLD 88

Nitric Oxide Analyzer for Liquid NO Samples

parameters: NO / NOx
instruments: Auxiliaries

CON 765

NOy Gold Converter

instruments: Auxiliaries
